Image Renditions

A SharePoint Online tutorial by Peter Kalmström

Once the SharePoint Server Publishing Infrastructure feature has been activated for the site collection you can activate the SharePoint Server Publishing feature for the site. This was described in the previous demo.

Image Rendtions is one of the new features you get when the SharePoint Server Publishing feature has been activated. In the demo below Peter Kalmström, CEO and Systems Designer of kalmstrom.com Business Solutions, explains how to use the feature and how to create your own image rendition options.

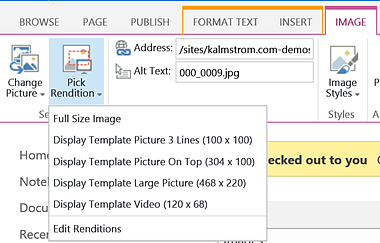

When the SharePoint Server Publishing feature has been activated on a site and you create a new page – which will be a publishing page – and insert an image, then multiple renditions of the image will be created on the server. You can select one of them if you click on the Pic Rendition button under the IMAGE tab.

SharePoint Content and Structure

When you edit the selected rendition you can manually select how the image should be resized, instead of the automatic zoom that SharePoint does.

Create a custom rendition

  1. Click on the settings gear and select Site settings.
  2. In the Look and Feel group, click on the link 'Image Renditions'.
  3. Click on the 'Add new item' link.
  4. Give the new rendition an name and specify the size of it.
  5. Click on Save.
